Models PS120-G2, PS240-G2 - Platinum Series Amplifiers
The next generation of Bogen’s Platinum Series (PS) Amplifiers delivers the highest audio volume for all speaker types at specified power levels, eliminating the need for an external impedance matching transformer. The Gen-2 Platinum Series amplifiers include an internal impedance matching transformer and a rear-panel selector switch with separate connector blocks for both 8-ohm/25V and 70V speakers. These new models also retain the powerful features of the first-generation PS models, including the 5-band full parametric equalizer (EQ).

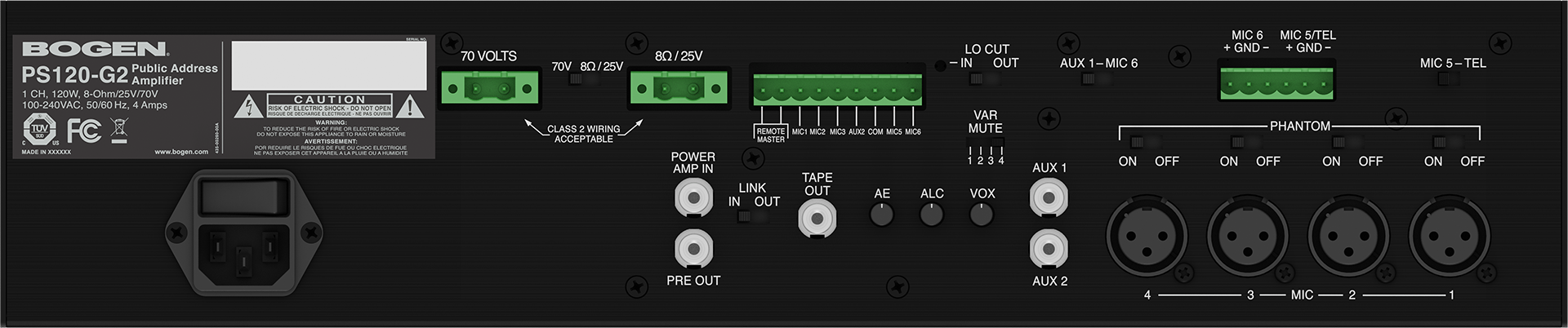

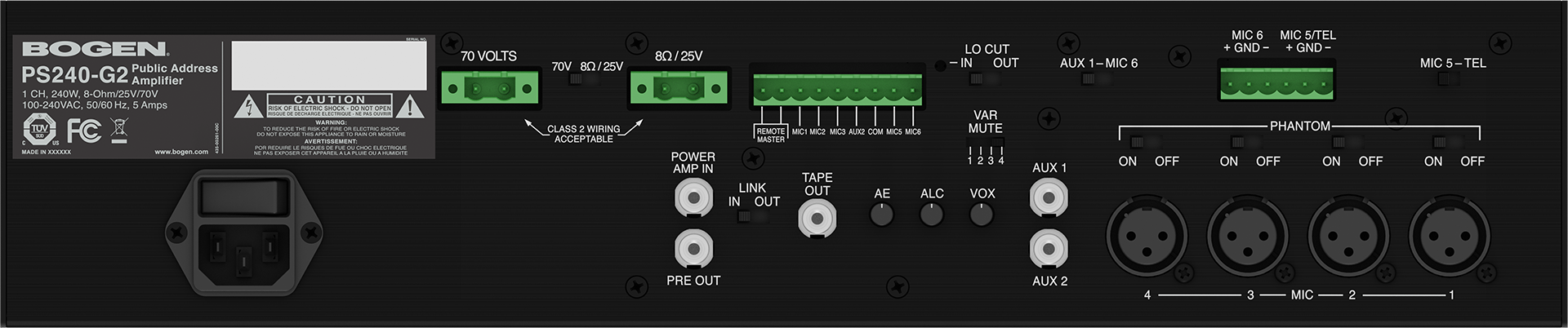

- New 8-ohm/25V-70V switch and separate output connector blocks on rear panel allows the user to easily select the proper amp output for the type of speakers being installed; no longer will you need an external impedance matching transformer for 70V speakers.
- Increase design flexibility and enable a wide variety of installation configurations with a single amplifier, allowing either 8-ohm/25V, 70V operation.
- 120 and 240-watt models
- 4 Dedicated microphone inputs (XLR connectors MIC 1-4) with selectable phantom power
- 1 Selectable MIC 5/TEL input
- 1 Selectable MIC 6/AUX 1 input
- 1 Dedicated AUX 2 input
- 8-ohm/25V, 70V speaker outputs
- 5-band full parametric equalizer with independent Gain, Frequency, and Q controls
- True loudness contour function on AUX 1 and AUX 2
- Audio Enhancement feature for improved voice intelligibility with adjustable level
- Lo-cut filter for all MIC channels
- Remote master volume control capability (using optional GSRVC)
Accessories
Full Spec Sheets, User Manuals, Brochures
