Standalone IP Paging Devices

Simple, Seamless, Future Proof

The latest Nyquist firmware introduces new capabilities for a variety of Nyquist devices, including operation as SIP compliant endpoints for VoIP phone system paging and networked managed audio applications, or simply as standalone audio equipment. The first wave of devices with these new capabilities includes the NQ-P0100 Matrix Mixer Pre-Amp (MMPA), NQ-PAxxx Public Address Mixer Amplifiers (PAMA), the NQ-Axxxx 2- and 4-Channel Audio Power Amplifiers (Amps), NQ-S1810CT-G2 VoIP Ceiling and NQ-S1810WT-G2 Wall Baffle Speakers, NQ-GA20P2 Plenum-Rated 20W Integrated Amplifier, and the NQ-GA10P/PV Plenum-Rated VoIP Intercom Modules.

These Nyquist devices incorporate the latest in IP technology with network-based volume and DSP controls, combined SIP endpoint and priority-based Multicast streaming functionality, and they can integrate with any 3rd party VoIP telephone system or other SIP server-based solutions such as a unified communications (UC) platform. In a non-SIP environment, the devices are capable of receiving audio through one or more Multicast channels. The easy-to-use, web-based graphical user interface allows users to create up to 24 prioritized audio channels using unique codec, Multicast address and port number combinations. The devices all support G.711, Wideband G.722, and OPUS (HD Audio) codecs, and are UL/CSA and CE certified, as applicable.

"These Nyquist devices now provide seamless integration with your existing IP paging, VoIP phone system, or other fixed installation audio applications." -Ken Venuti, Director, Sales Engineering

nYQUIST STANDALONE OVERVIEW BROCHURE

Powerful, intuitive pro-audio DSP allows customization and optimization of your audio to deliver the best sound performance in any space.

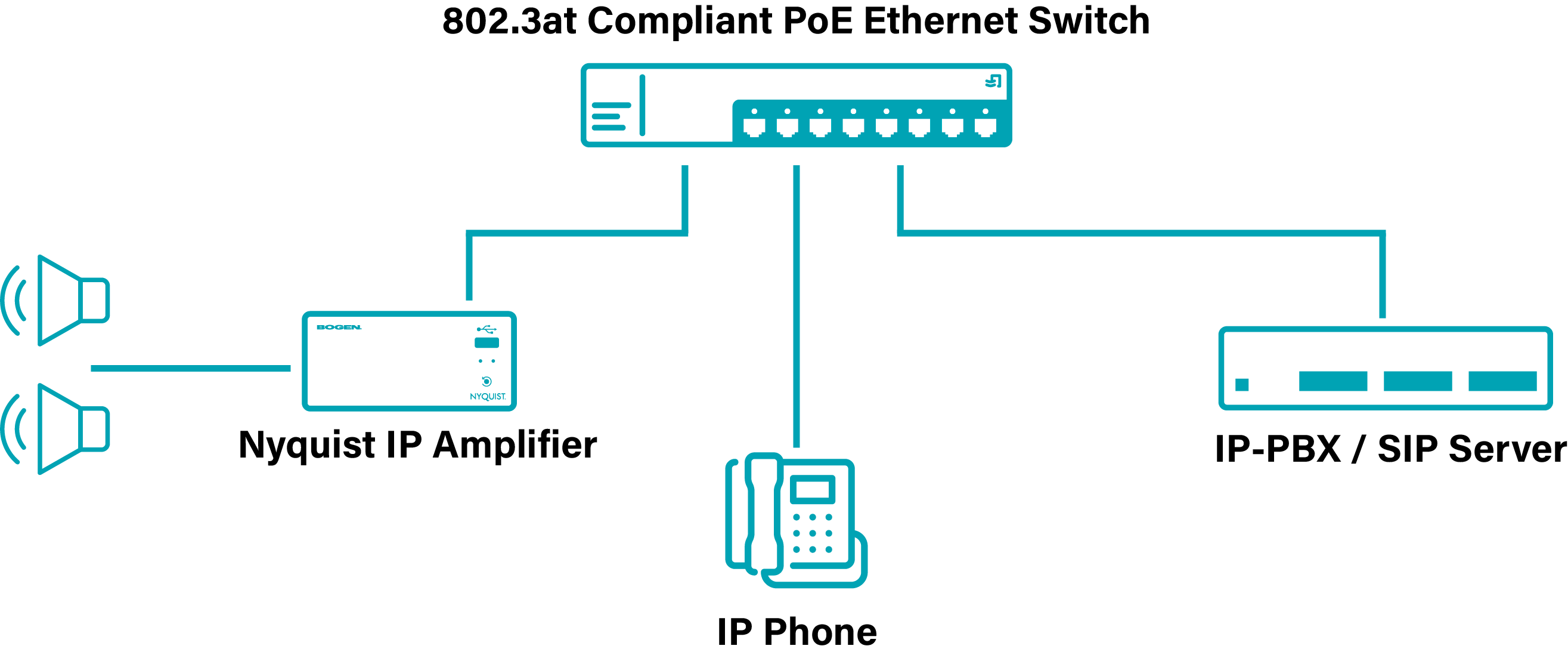

Example of a typical Nyquist Standalone installation:

Highlights

Connect these SIP compliant devices to your VoIP phone system to easily add or expand your paging capabilities
Use these Nyquist devices in standalone applications where network-based control of audio features like DSP and signal routing are desired
Access a full range of pro-audio DSP based amplifiers, equipped with up to 4-line inputs and 4 output channels (4-ohm, 8-ohm, 25V, 70V) at multiple power levels, for delivering great sound in any environment
The PAMA can be used standalone as a public address head-end for small-to-medium paging applications, or it can act as a network-based IP paging amplifier connected to a VoIP phone system or other SIP server

Leverage the Nyquist MMPA in your audio environment to mix signals from 4 line-level sources, or use its built-in Push-to-Talk microphone input as a primary or secondary paging point
Simple browser-based setup for standalone operation, including SIP registration info and configuration of up to 24 prioritized Multicast streams (per device)
Future-proof your investment with the capability to evolve your system to a full Nyquist IP-based solution (Nyquist C4000) for paging, two-way intercom, and scheduled shift tones

Standalone Documentation
